Using PowerShell to verify if a driver is signed and extracting data from the inf

Had a discussion a while ago with my colleague Johan Arwidmark where he told me that he sometimes installs MDT just to be able to verify the integrity of driver to make sure the drivers are signed and the inf files hasn't been tampered with. This is also one of the few things that you miss out on if you use the “total driver control” method in ConfigMgr and create normal packages for drivers instead of importing them.

I always like a good challenge, so I thought why not do this with a PowerShell script instead that can be run without any dependency to MDT.

If you just want the script, you can get it here:

 Invoke-VerifyDriver.ps1

But if you want a deep dive please read on 😊

The first problem was that the inf files themselves are not embedded with a signature so how can you verify that they are signed and not tampered with?

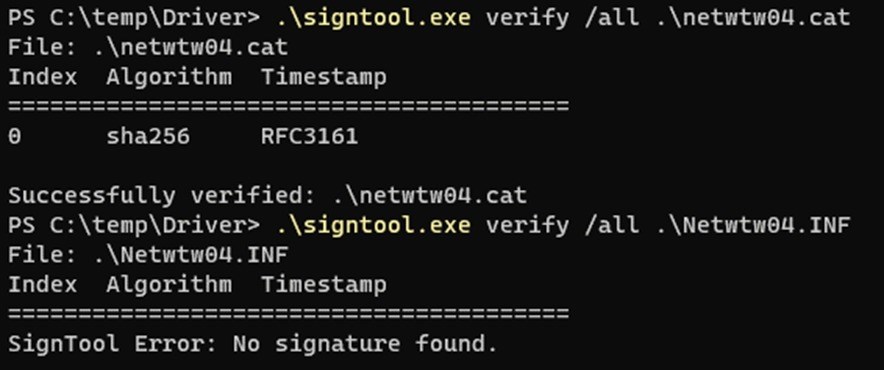

Using the signtool.exe from Microsoft we can see that the .cat file is signed, but checking the .inf file it says it does not have a signature.

So when I ran the signtool I had not tampered against the inf file it still says not signed (because there is no embedded signature, doh).

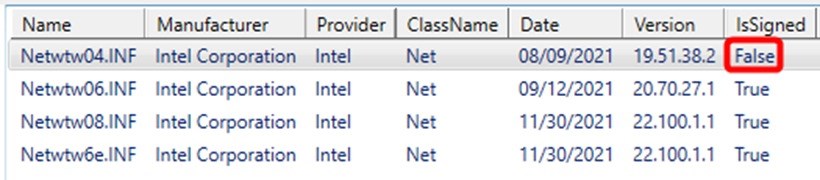

But I did do it before I ran my script. So if comparing signtool output to the output of the script below we can see that my script says “IsSigned” = False.

So how does MDT and ConfigMgr (and the script) verify inf files then? Well after some digging around in the Microsoft docs I found a class called SetupVerifyInfFile and this seems to be the class the MDT is using. For this to work in PowerShell I had to call it as a CSharp typedefinition and figure out the correct syntax.

[DllImport("setupapi.dll", CharSet = CharSet.Auto, SetLastError = true)]
public static extern bool SetupVerifyInfFile(string infName, IntPtr AltPlatformInfo, ref INF_SIGNER_INFO InfSignerInfo);

Another issue was how to know which driver class a specific driver belonged to. In the INF files the is an attribute called ClassGUID and these are defined here System-Defined Device Setup Classes Available to Vendors. But I really didn’t want to hard code this into the script and have to maintain them so I also found this class called SetupDiClassNameFromGuid that translates the guid from the OS instead.

[DllImport("setupapi.dll", EntryPoint = "SetupDiClassNameFromGuidW", CharSet = CharSet.Unicode, SetLastError = true)]
    public static extern bool SetupDiClassNameFromGuid(
       ref Guid theGuid, StringBuilder returnBuffer, uint returnBufferSize, out uint requiredSize);

The final challenge was to create a hash of all the files in the folder matching the hash from the MDT. There is no built-in method for creating a hash of a folder and all its content so you must create a hash of each individual file and then create a new hash of all those hashes combined. The trick here was to not hash the array of individual hashes but rather joining them in one long string and remove any line breaks or carriage returns and then hash that sting. Once I did this, I got a hash matching the one that MDT produced.

So if you care about security, don’t like to troubleshoot drivers when they fail during an installation because they are not properly signed and you don’t want to install MDT just to verify drivers, feel free to use my script!

/Mattias Benninge
Principal Engineer @ 2Pint Software
@matbg X / Twitter
